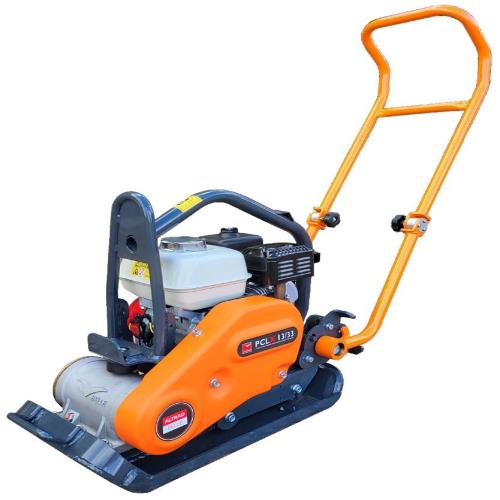

Belle PCLX 13/33 13" / 300mm Honda Engined Plate Compactor
A midweight Honda GX120 powered multi-purpose 13kn forward plate compactor. The ultimate combination of weight, power and versatility enables this compactor plate to perform in a multitude of applications to the highest standard.
Features in the Belle PCLX 13/33 plate compactor
- 13kN high performance Vibrator for maximum compaction and excellent travel speeds.
- Powered by a Honda GX120 Petrol Engine
- Sealed oil filled vibrator with top quality bearings for reli ability and durability.
- Ergonomic operator handle for precise manouverability, includes Pull-Back bar.
- ’Easy-fold’ operator handle for easy storage & transportation. Fits within a standard car boot.
- Thickener Plate in rear of Baseplate for increased durability.
- Specially engineered Fabricated Baseplate designed to eradicate ‘Track’ marks on asphalt.
- 3 mount HAV system for reduced HAV levels and improved usage time.
- Optional ‘Easy-Fit’ 12-litre Water Tank & ‘Easy-Clean’ Spray bar system.
- Durable metallic Water Control Tap for high flow rate.
- Low HAV handles that still allow precision control.
- Optional detachable ‘Easy-Fit’ Wheel Kit.
- Handle Latch for increased stability whilst operating the optional Wheel Kit
- Part No. LX3351
- Width (mm) 330
- Length - Operation (mm) 1080
- Height - Operation (mm) 1140
- Length - Storage (mm) 660
- Height - Storage (mm) 557
- Plate Width (mm) 330
- Engine Model Honda GX120
- Engine Power (Hp / kW) 4 / 3 @3800rpm
- *Weight (kg) 68
- Static Pressure (kg/m²) 567
- Centrifugal Force (kN) 13
- Frequency (Hz) 101
- Max. Travel Speed (m/min) 25
- Max. Gradient (°) 20
- **Vibration level (m/sec²) 3.2
- Noise Level (dB(A)) 105
* Weight does not include optional Water Kit or optional Wheel Kit.
** Vibration levels tested to BS5349 using EN 500-4
