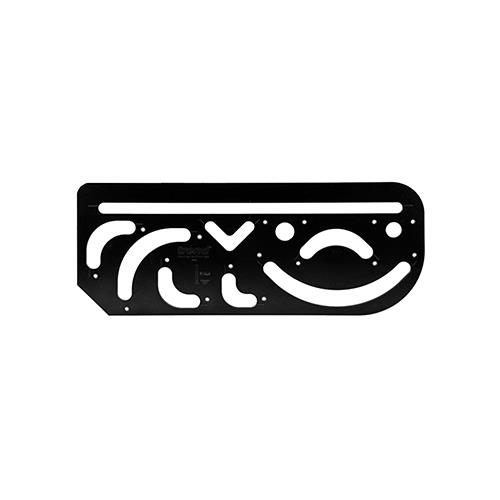

Trend Aperture & Radius Jig

• The Trend Aperture Radius Jig AR/JIG is used to rout out apertures, recesses and radius in worktops to fit a range of sinks, hobs and even curved cabinets.
• It has been designed to cut both an internal and external radius with the use of either pins or engraved slight lines.
• The ability to cut 90 degree angles, which, when combined with the straight slot it will allow a hob or sink aperture to be routed.
• The central slot allows cuts up to 820mm long with radius curves at 40mm, 60mm, 80mm, 100mm, 150mm and 250mm, and has external radii of 50mm, 100mm and 200mm.
• The Jig has a 45 degree end cut, plus 26mm and 35mm cabinet door hinge recess facility, this with the engraved lines to help position the jig easily and accuracy makes this easy to use and convenient.
• Each of the six radius curves are paired with a set of peg holes for easy connection to the work top.
• This Jig is supplied with 4 pins and a manual to ensure it is ready to use straight away.

• Corner angle - 90 degree
• Slot length - 830mm
• Radius curves - 40, 60, 80, 100, 150 and 250mm
• External radius - 50, 100 and 200mm
• End cut - 45 degrees
• Kitchen hinge recess - 26mm and 35mm
• Length - 1000mm
• Thickness - 12mm
• Width - 390mm
• Weight - 4.6kg
