Please read these instructions carefully before use and retain for future reference.
• When using electrical appliances basic safety precautions should always be followed.
• Check that the voltage indicated on the rating plate corresponds with that of the local network before connecting the appliance
to the mains power supply.
• The appliance must be used on a stable surface.
• In order to avoid overheating do not cover the heater.
• This appliance is intended for domestic use only. It should not be used for commercial purposes.
• Always turn the product to the OFF position and unplug it from the electrical outlet when not in use.
• The heater must not be located immediately below an electrical socket-outlet.
• Do not operate the heater with a damaged cord or plug, or after the heater malfunctions, has been dropped, or damaged in
any manner.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person to
avoid a hazard.
• This heater is filled with a precise quantity of oil. Repairs requiring the opening of the oil container are only to be made by
the manufacturer or his service agent who should be contacted if there is an oil leak.
• This appliance contains no user-serviceable parts.
• When scrapping the heater, follow the regulations concerning the disposal of oil.
• Don’t use this heater in the immediate surroundings of a bath, a shower or a swimming pool or where it may fall into a bathtub
or other water container.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or
installed in its intended normal operating position and they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not
plug in, regulate and clean the appliance or perform user maintenance.
• The appliance must be unplugged from the power supply after use and whilst any maintenance such as cleaning is carried out.
• This heater includes an overheat protection system that shuts off the heater when parts of the heater are getting excessively hot.
• This heater is a high-power product. A worn mains socket will result in over-heating of the plug and socket. If this occurs
consult a qualified electrician.
• Do not use an extension lead – most are unable to handle the power this product requires.
CAUTION - Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are present.
INSTRUCTIONS FOR USE
• Before using the heater, make sure that it is on a flat and stable surface. Damage may occur if it is placed on an incline or
uneven surface.
• Set all the controls to OFF position and insert the plug into a mains socket
• Set the timer by turning the dial clockwise (do not turn it counter clockwise) until the pointer arrow aligns to the correct
time. Mains power is required to keep the clock running.
• Rotate the thermostat knob clockwise to MAX position and switch the heater on.
• Switch I is for low heat, switch II for medium heat and turn both switches on forhigh heat. When the heating element is on
the power switch will illuminate.
• When your room reaches the desired temperature, slowly rotate the thermostat control counter clockwise until the power
light goes out. The thermostat can now be left at this setting. As soon as the room temperature has dropped below the set
temperature, the unit will switch it self on automatically until the set temperature has been reached again. In this way the
room temperature remains constant with the most economical use of electricity.
• If you want to change the room temperature setting, rotate the thermostat knob clockwise to raise the temperature, or
counter clockwise to lower it

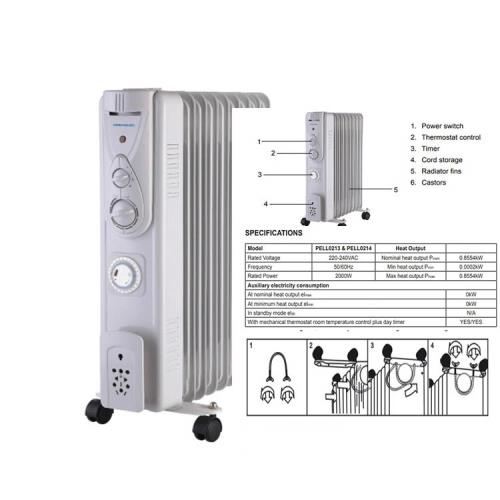

Model PELL0213 Heat Output
Rated Voltage 220-240VAC Nominal heat output Pnom 0.8554kW
Frequency 50/60Hz Min heat output Pmin 0.0002kW
Rated Power 2000W Max heat output Pmax 0.8554kW
Auxiliary electricity consumption
At nominal heat output elmax 0kW
At minimum heat output elmin 0kW
In standby mode elsb N/A
With mechanical thermostat room temperature control plus day timer YES/YES
: 2kW
: 240VAC
: 580mm
: 400mm
