Radiodetection Cat4+ Strike Alertcable Detect

Cable Avoidance Tool 4 STRIKEALERT
  • Part Number: RADTCAT4PLUS
  • Brand: Other Brands Other Brands
(£690.83 ex VAT) price : £829.00

Quantity :
Usually available within 5 - 7 working days. FREE POSTAGE TO UK MAINLAND ON ORDERS ABOVE £90.00 EXCLUSIONS MAY APPLY SEE TERMS.
For VAT exempt Export enquiries please contact us PRIOR to ordering
Connect with us:

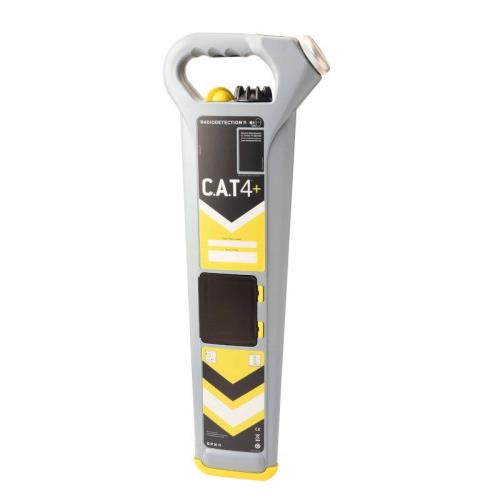

RadioDetection CAT4+ Cable Avoidance Tool with Depth Estimation and StrikeAlert ( EN31)

The RadioDetection CAT4+ is designed to safely locate buried utilities, as well as telecoms, street lighting and CAT V cable. Using the Radiodetection CAT4+ allows the user to dig more safely and find more buried utilities.

Reduce cable strikes

Coupling the unit with a genny further reduces the risks of cable strikes.

The CAT4+ retains all the features of the CAT4, with additional of depth estimation and strikealert. Depth can be estimated from either the Genny signal or Sonde. Simply press the button under the screen to display the estimated depth.

Simply to use

The unit is designed to be used with just one hand for ease of use. The on / off trigger, mode selection and sensitivity dial are all within easy reach of each other. The loud speaker is removable for use in noisy environments if required. An automatic back light provides visibility in all conditions. A simple to read bargraph allows the operator to quickly spot a peak making detection of small diameter cables possible.

RadioDection CAT4+ operating modes

  • C.A.T4 Avoidance mode: Simultaneously search for and pinpoint Genny, Power and Radio signals for rapid surveying.
  • Genny mode: Detects the signals transmitted by Genny4 (available separately)
  • Power mode: Detects the electromagnetic fields generated by loaded power cables.
  • Radio mode: Detects long-range radio signals as they travel along buried cables and pipes.
C.A.T4 Technical SpecificationsLocating Depth Guide (m)
Locate PerformanceFrequency RangeSensitivity @1MGood ConditionsPoor Conditions
Power Signals50 Hz - 1.5 kHz3mA32
Radio Signals15 kHz - 30 kHz25μA21
Genny4 Signals32.768 kHz ±20 Hz131.072 kHz ±20 Hz5μA42
Avoidance Mode (A)P + R + Gas aboveas above42
Dynamic Range120dB @ 10Hz
Dynamic Overload Protection40dB @ 50hz (automatic)
Locate Accuracy±10% of depth
Depth AccuracyLine: 5% 0.1m to 3m (4in to 10ft)
(on undistorted signal with no adjacent signals)Sonde: 5% 0.1m to 7m (4in to 16ft)
Horizontal GPS Position Accuracy3m CEP (Circular Error Probable)
Operating Temperature Range-20 to 50°C
Storage Temperature Range-20 to 70°C
Environmental ProtectionIP54
Batteries2 x LR20 (D) 1.5V alkaline
Compatible with D type NiMH rechargeable batteries
Data InterfaceUSB 2.0, Bluetooth®
Recommended Service Interval1 Year
Warranty12 months from purchase
Data Storage Capacity2 GB
Calibration Due WarningCountdown from 31 days before use



 C.A.T4  C.A.T4+  gC.A.T4+
Avoidance mode
Genny signal locate
Power signal locate
Radio signal locate✔ ✔
Smaller diameter locate frequency✔
Dynamic overload protection
Data aquisition
 Service due indicator
 SWING warning
 Bluetooth (for future use)
